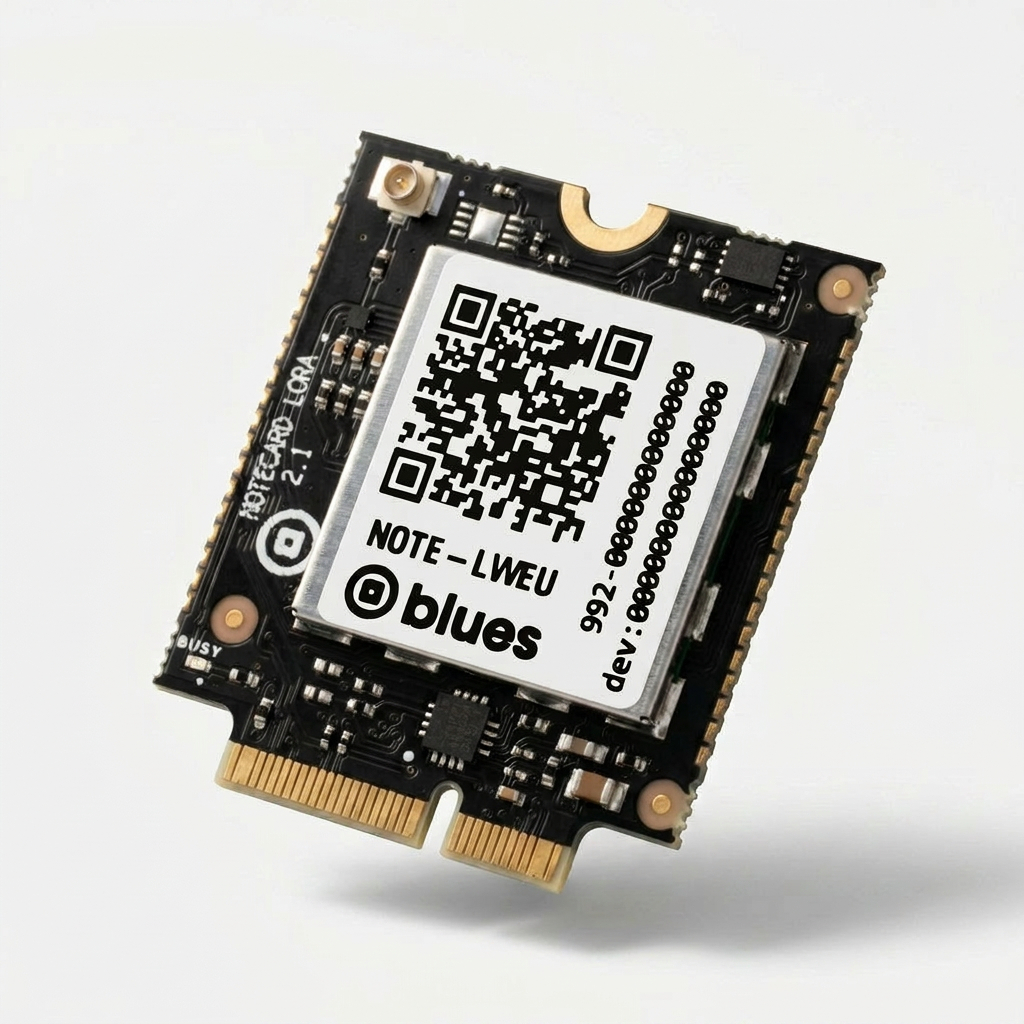

Notecard for LoRa
Bring the power of the Notecard ecosystem to your embedded device, and discover the value of your data with the Blues LoRa module
Dimensions
- 30mm x 35mm
Weight
- 3 grams
Connections
- M.2 Edge Connector
- Castellated edges
Interfaces
- USB Serial Interface
- UART Serial Interface
- I2C Interface
Supported Microcontrollers
- Any
Onboard Sensors
- Temperature
Operating Temperature Ratings
- -40° C min - 85° C max
Power Ratings
- 2.5V min - 5.5V max
- Typically draws less than ~8µA@5V when idle
Radio Access Technologies
- LoRaWAN (antenna required)
- Either 868 MHz (Europe) or 915 MHz (United States)
Notecard LoRa Variations
- Europe 868 MHz
- United States 918 MHz
Additional Information
- Datasheet for Notecard LoRa
-
Leverage LoRa and LoRaWAN® devices in your IIoT Solutions
Achieve long-range, low-power communication with the Notecard for LoRa devices. Communicating with your devices via LoRa radio is ideal for battery-powered and remote IIoT applications where cellular isn't an option.
Build with the Notecard for LoRa module for:
- A compact device, 30mm x 35mm SOM (system on module)
- Castellated edges provide an easy way to solder the Notecard directly onto a PCB for scalability
- Plug-and-play integration with The Things Network
- Access to our industry-leading security and cloud orchestration platform
Need to use more than just LoRa in your architecture?
We designed the Notecards around the idea of wireless harmonization making them completely compatible with each other, utilizing the same pinouts, with optional optimization differences, and the core Notecard API subset.
-
Simplified Development
With our plug-and-play JSON interface, you can stand up your application in hours, not weeks
-
Complete Control with Notehub
Notehub is our cloud orchestration layer that makes it easy to route data to the cloud, quickly provision devices at scale, and manage all your assets
-
Interchangeable Architecture
Our architecture gives you the freedom and flexibility to swap Notecards and connectivity methods with minimal additional configuration or lift
-
Industry Leading Security
Notecards feature robust security through encrypted “off the internet” communications and pre-loaded certificates for device authentication through our integrated secure element
-
LoRaWAN® Compatible
Notecard LoRa works across all layers of the LoRa network, including compatibility with LoRaWAN® and The Things Network
-
Power Efficient Hardware
Operate for years on a battery, and even extend battery life with sleep mode, which can wake up on sensor events
-
Simplified Development
With our plug-and-play JSON interface, you can stand up your application in hours, not weeks
-
Complete Control with Notehub
Notehub is our cloud orchestration layer that makes it easy to route data to the cloud, quickly provision devices at scale, and manage all your assets
-
Interchangeable Architecture
Our architecture gives you the freedom and flexibility to swap Notecards and connectivity methods with minimal additional configuration or lift
-
Industry Leading Security
The Notecard features robust security through encrypted “off the internet” communications and pre-loaded certificates for device authentication through our integrated secure element
-
LoRaWAN® Compatible
Notecard LoRa works across all layers of the LoRa network, including compatibility with LoRaWAN® and the Things Network
-
Power Efficient Hardware
Operate for years on a battery, and even extend battery life with sleep mode, which can wake up on sensor events
-
Built on the Blues Notecard Ecosystem
Achieve faster time-to-market, reliability, and security with Notecard.
Blues has designed its Notecards to be easily embedded into any project through an M.2 edge key E connector and out-of-the-box compatibility with a wide range of microcontrollers from an 8-bit Arduino to 32-bit ESP32, STM32, or any major single-board computer platform.
Don’t have your own device? The Notecard for LoRa module is compatible with all Blues Notecarriers.
By bundling everything you need into a single device, get a head start on moving your connected physical product from ideation to full-scale production.
Kickstart Development with a Starter Kit

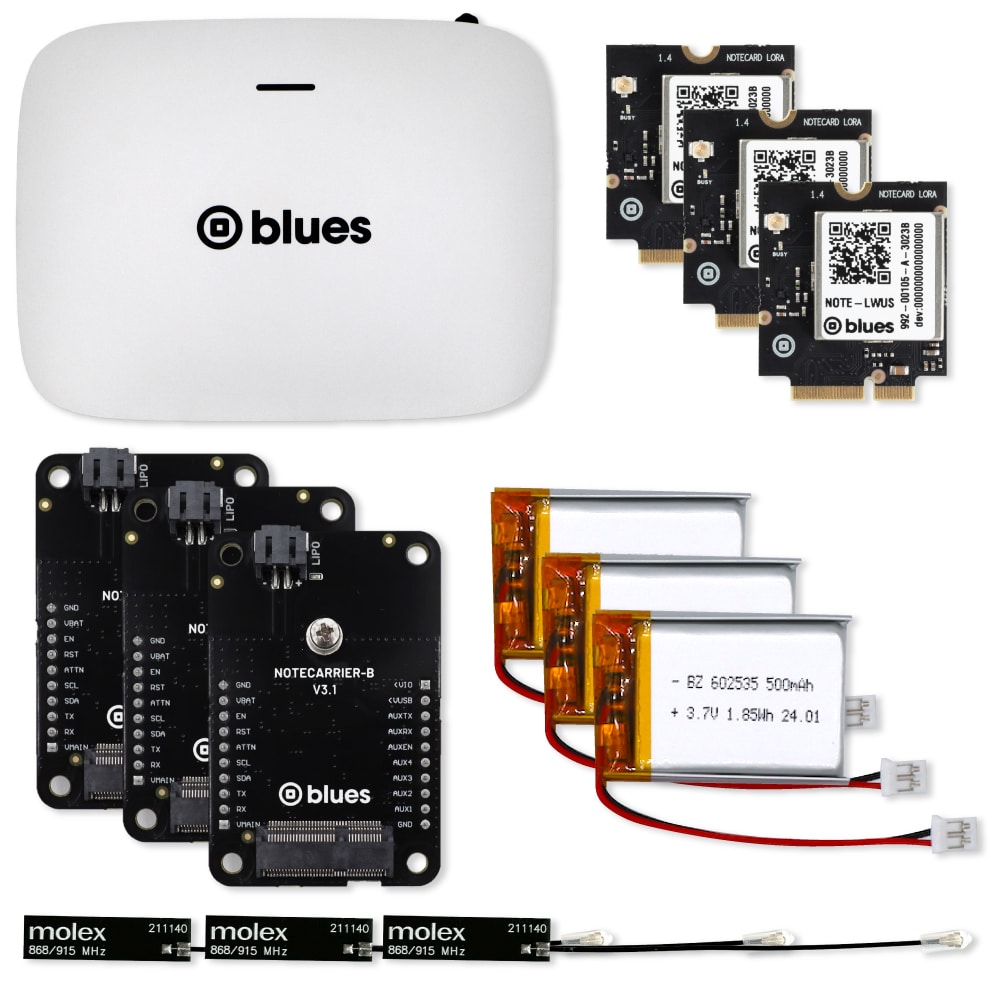

Build your Notecard LoRa-based POC faster with the Blues Starter Kit for LoRaWAN®.
Available in US915 and Eu868 variants, the kit contains everything you need to bring your LoRa solution to life.
What’s Included:
WisGate Edge Lite 2 LoRaWAN Gateway
3x Notecard LoRa
3x Notecarrier B
3x Battery
3x LoRa Antenna
