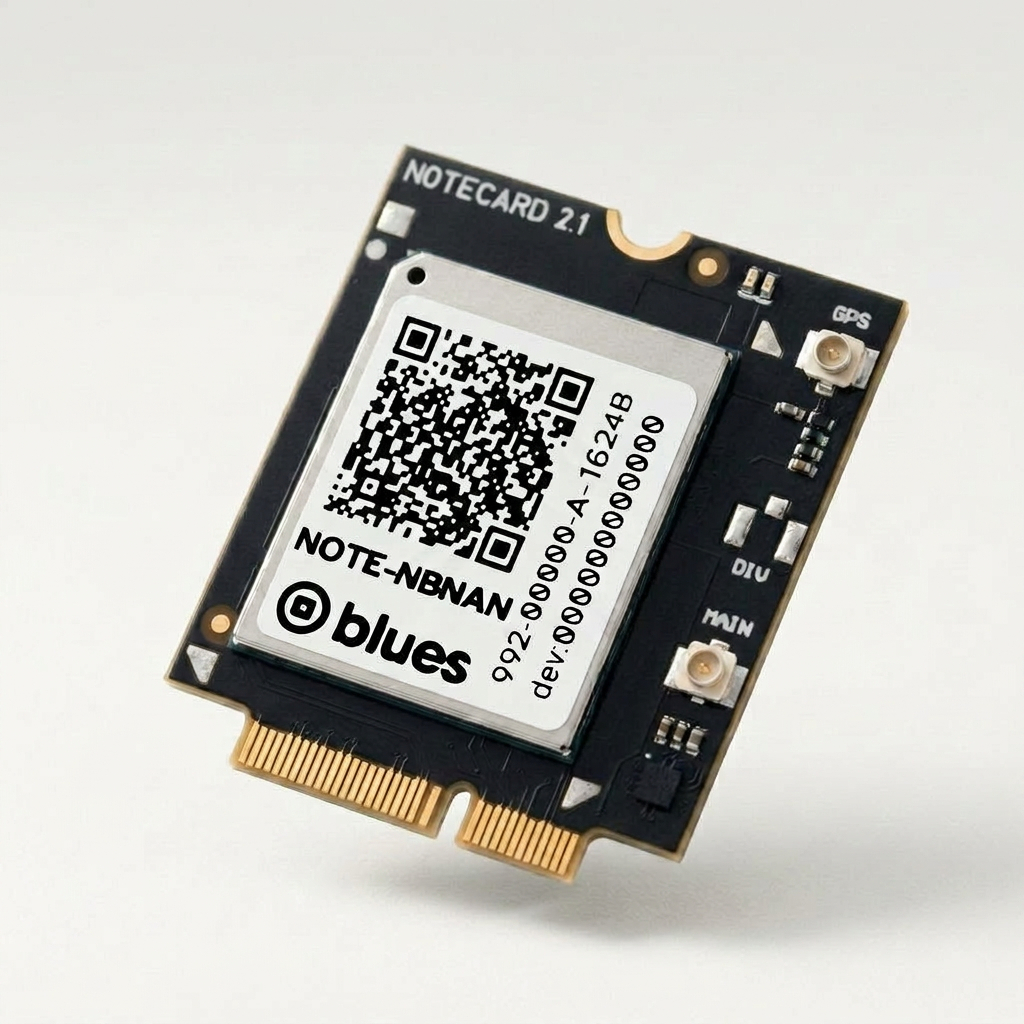

Notecard Cellular

Turnkey cellular connectivity packaged into a secure, low-power system-on-module.

LTE Cat 1 · LTE Cat 1 bis · LTE Cat M · NB-IoT

Buy nowTalk to a human

Dimensions: 30mm x 35mm

Weight: 6 grams

Connection: M.2 Edge Connector

Interfaces: USB Serial Interface, UART Serial Interface, I2C Interface

Supported Microcontrollers: Any

Onboard Sensors: GPS (antenna required), Accelerometer, Temperature

Operating Temperature Ratings: -35° C min – 75° C max

Power Ratings: 2.5V min – 5.5V max

Typically draws less than ~9µA@5V when idle

Security: Integrated STSAFE Secure Element

Radio Access Technologies: Cellular LTE (antenna required)

Notecard Cellular Variations: Wide-band Global (LTE Cat 1), Mid-band Global (LTE Cat 1 bis), Narrow-band Global (LTE M), Wide-band North America (LTE Cat 1), Mid-band North America (LTE Cat 1 bis), Narrow-band North America (LTE M), Wide-band EMEA (LTE Cat 1)

Cellular Service: 10 Years (no contract required), 500MB of included data (additional data can be purchased)

Additional Information

    We Solved Cellular Connectivity So You Can Focus on Innovating

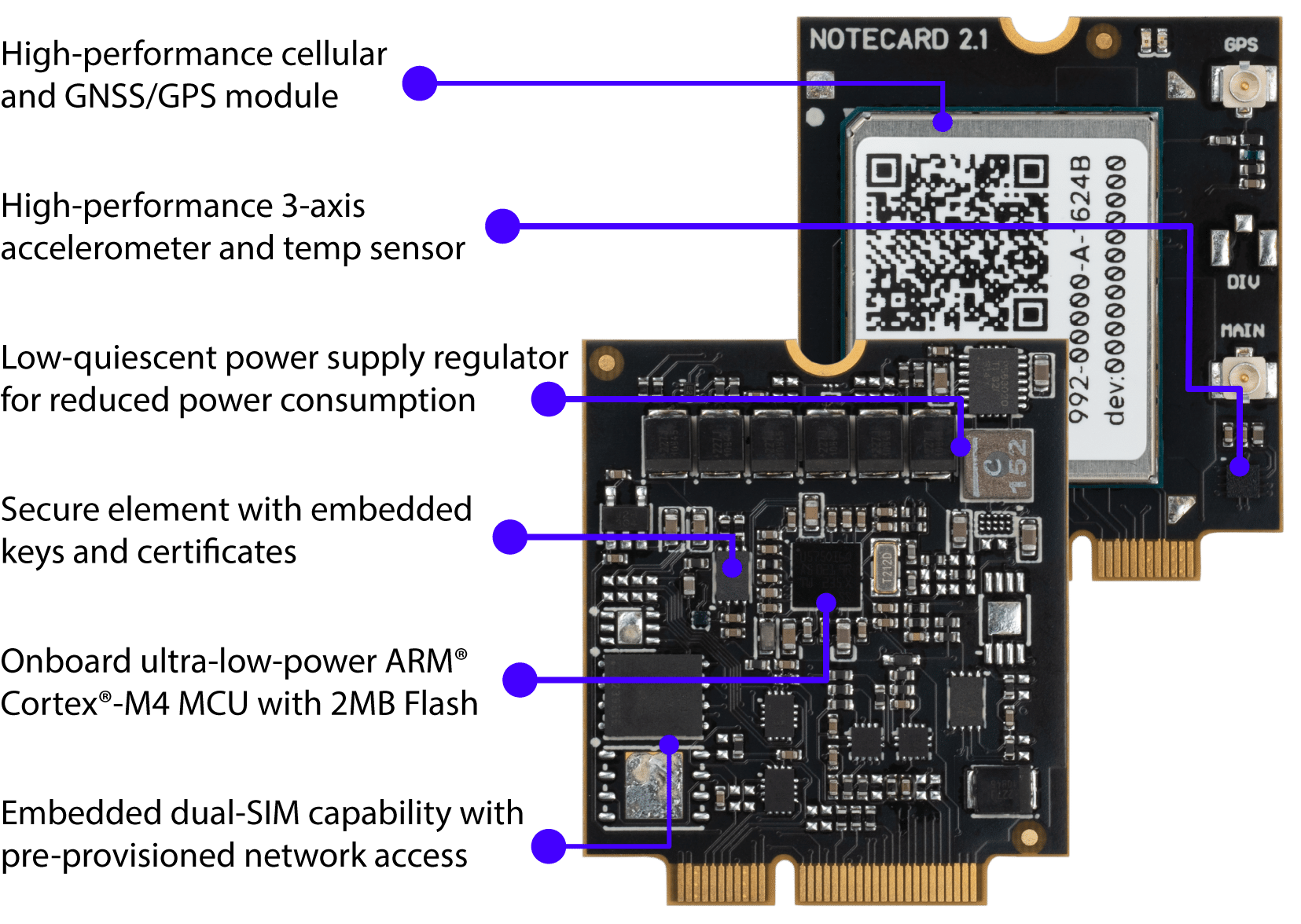

    Built with an upgraded STM32 MCU, onboard dual SIM capability, and a low-quiescent current power supply, the redesigned Notecard Cellular delivers improved performance at a lower price.

    These enhancements are integrated into a low-power system-on-module featuring secure ‘off the internet’ communications, pre-provisioned cloud connectivity, and GPS location for all types of fixed and mobile applications.

    Along with these notable hardware improvements, we’ve added a “midband” LTE Cat 1 bis coverage option that provides wideband performance at near narrowband prices.

    And, of course, each device still includes 500MB of prepaid cellular connectivity.

Your Gateway to Intelligent Connected Products

  • A Suite of Coverage Options

      The Notecard Cellular includes 500MB of cellular data and offers versatile coverage options, including NB-IoT, Cat-M, LTE Cat 1 bis, and LTE Cat-1 with North American, EMEA, and Global coverage models.

  • Monitor Antenna Streamline Icon: https://streamlinehq.com monitor-antenna

    Harmonized Wireless Architecture

      Switch between any of the 4 major RATs (Cellular, WiFi, LoRa, and Satellite) at any point in the product development cycle with our interchangeable architecture.

  • Pinpoint Multi-Source Asset Tracking

      Dynamically track all your assets with our “best location” feature that aggregates location data from various sources like cell towers, WiFi access points, and GPS/GNSS.

  • Fast-Track Your Time to Market

      Pre-provisioned connectivity and a low-code JSON interface reduce your time to market from years to months.

  • Effortless Data Routing to any Cloud

      Route data to any cloud, including AWS, Azure, GCP, Snowflake, and more, using Notehub — often in a “no code” implementation.

  • Industry-Leading Security

      End-to-end security from devices authenticated through an integrated secure element to dataflows using encrypted communications and VPN tunnels.

Coverage Tailored to Your Solution


The Notecard Cellular includes a “midband” LTE Cat 1 bis Notecard alongside LTE Cat 1, LTE Cat M, and NB-IoT options. Each option is offered in North American and Global coverage models, enabling you to customize your coverage to your deployment further. LTE Cat 1 bis functions seamlessly within established LTE networks and distinguishes itself by operating efficiently with a single antenna, contrasting with the two antennas required to support LTE Cat 1. This innovation reduces unit cost while making them more compact and more accessible to design.

An Integrated, Low-Power Cellular Data Pump

How Blues Works diagram with icons and explanations

Transform Products into Data-Driven Services with Blues

To succeed today and get ahead of tomorrow, businesses need to transform into data-driven “as a service” providers by capturing their product’s data and routing it to the cloud, which can be packaged into valuable service offerings.

Create new recurring revenue streams by transforming your product’s data into valuable service offerings.



Attract and retain customers by arming them with cutting-edge tools to enhance operational efficiency.

Gain insight into your product to improve performance and drive innovation.

Capture untapped data points for more informed decision-making.
